YS-K SERIES Stationary Air Cylinders

  Lightweight and compact style pneumatic cylinders with closed centers.

Special Features

  • Compact and lightweight design (low profile for clearance)
  • Versatile for many workholding applications
  • Easy setup and installation for MC applications
  • Alloy body
  • Low maintenance

Specifications

Model Unit YS1415K YS1820K YS2220K
Piston Stroke in. 0.591 0.787 0.787
Max. Air Pressure psi 101 101 101
Max. Hyd. Pressure psi 217 217 217
Max. Draw Bar Pull Force at Air Pressure .6 MPa kN (kgf) 8.1 (826) 14.6 (1489) 20.8 (2121)
Max. Draw Bar Push Force at Air Pressure .6 MPa kN (kgf) 8.5 (867) 15.1 (1540) 21.4 (2182)
Max. Draw Bar Pull Force at Hydraulic Pressure 1.5 MPa kN (kgf) 20.1 (2050) 36.5 (3722) 51.9 (5292)
Max. Draw Bar Push Force at Hydraulic Pressure 1.5 MPa kN (kgf) 20.8 (2121) 37.7 (3844) 53.6 (5466)
Net Weight lbs. 33 48 85

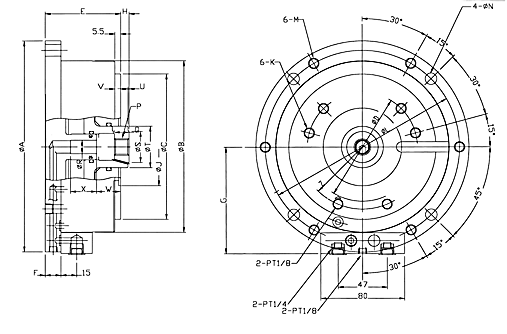

Dimensional Drawings

Dimensions

Model YS1415K YS1820K YS2220K
Diameter A(h7) 7.992 9.764 11.811
Diameter B 6.497 8.268 10
Diameter C(h7) 5.512 6.693 8.661
Diameter D 4.126 5.252 6.748
E 2.835 3.622 3.937
F 0.591 0.591 1.591
G 4.055 4.941 5.807
H max. 0.472 0.787 0.394
H min. -0.118 0.000 -0.393
Diameter J 2.953 3.937 3.937
K M10x17 M12x24 M16x24
Diameter L 7.283 9.055 11.024
M M10 M10 M12
N 0.433 0.433 0.512
P M16x2.0 M18x2.5 M22x2.5
Q 0.709 1.201 1.122
Diameter R 0.512 0.512 0.512
Diameter S 1.339 1.417
Diameter T 1.575 1.575 1.772
U 0.512 0.492
V 0.079 0.394 0.472
W 0.906 1.398 1.732
X 0.984 1.220 1.339
Y 1.299 1.299 1.299
Z 2.374 3.150 3.740
