JN SERIES Scroll Chucks

  High quality, steel body, precision scroll chucks. Two-, three- and four-jaw configurations available.

Specifications
Model Unit JN-06T JN-07T JN-09T JN-10T JN-12T
Thru-Hole in. 1.771 2.165 2.755 3.346 3.779
Max. Gripping force KN (kgf) 30 (3059) 36 (3671) 39 (3977) 45 (4584) 54 (5506)
Gripping Range Int. (Diameter) in. 2.165-5.906 2.441-6.693 2.756-8.268 3.150-6.350 3.543-11.417
Gripping Range Ext. (Diameter) in. 0.118-6.30 0.157-7.087 0.197-8.661 0.197-10.236 0.394-11.811
Max. Speed rpm 4000 3500 2900 2500 2200
Net Weight lbs. 20 29 49 64 95
GD2 N.m 2 (kgf.m 2 ) N.m 2 (kgf.m 2 ) 1.27 (0.13)

2.45 (0.25)

6.37 (0.65)

10.3 (1.06)

23 (2.35)
Handle Torque ft. lbs. 65 80 108 130 151
Matching Soft Top Jaw ft. lbs. SBS06 SBS07 SBS09 SBS10 SBS12
Matching Hard Top Jaw ft. lbs. HBS06C HBS07C HBS09C HBS10C HBS12C

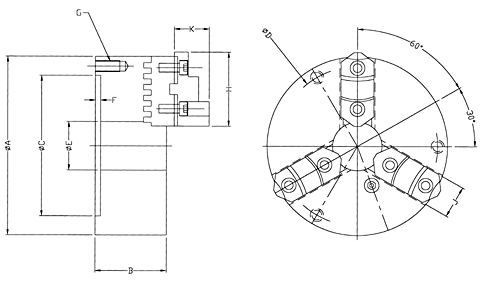

Dimensional Drawings

lathe chuck dimensions

Dimensions

Model JN-06 JN-07T JN-09T JN-10T JN-12T
A 6.496 7.480 9.134 10.748 12.205
B 2.559 2.953 3.307 3.386 3.780
C 5.118 6.102 7.480 9.055 10.236
D 5.787 6.772 8.268 9.843 11.220
E 1.772 2.165 2.756 3.346 3.780
F 0.197 0.197 0.236 0.236 0.276
G M10-3 M10-3 M12-3 M12-3 M12-3
H 2.677 3.150 3.543 3.937 4.528
J 1.024 1.102 1.206 1.378 1.575
K 1.535 1.654 1.969 2.126 2.205
L 0.394 0.433 0.472 0.472 0.551
