SB SERIES Soft Jaws

   Kitagawa's original equipment offers consistently high quality.

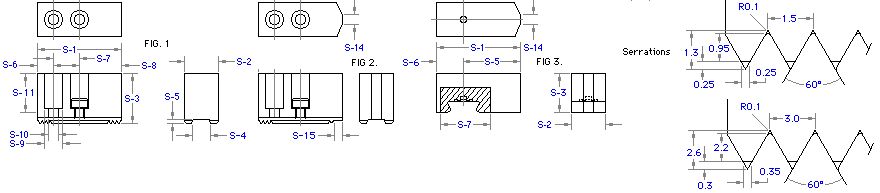

DIMENSIONS (Dimensions in Millimeters)

MODEL S-1 S-2 S-3 S-4 S-5 S-6 S-7 S-8 S-9 S-10 S-11 S-12 S-14 S-15 Serrations Fig.
SB04C1 48 19 23 8 3 8 15 25 11 6.6 15 M6 6 1.5x60° 2
SB04C1-036 48 19 36 8 3 8 15 25 11 6.6 28 M6 1.5x60° 1
SB04C1-048 48 19 48 8 3 8 15 25 11 6.6 40 M6 1.5x60° 1
SB04C1T 48 19 23 8 3 8 15 25 11 6.6 15 M6 1.5x60° 1
SB04C1T048 48 19 48 8 3 8 15 25 11 6.6 40 M6 1.5x60° 1
SB04B1 55 23 25 10 4 13 14 28 13.5 8.5 16 M8 3 13 1.5x60° 2
SB04B1-036 55 23 36 10 4 13 14 28 13.5 8.5 27 M8 3 1.5x60° 2
SB04B1-048 55 23 48 10 4 13 14 28 13.5 8.5 39 M8 3 1.5x60° 2
SB04A1T 55 23 25 10 4 13 14 28 13.5 8.5 16 M8 1.5x60° 1
SB04A1T048 55 23 48 10 4 13 14 28 13.5 8.5 39 M8 1.5x60° 1
SB04N1 49.5 23 23 10 4 10 14 25.5 13.5 8.5 14 M8 4 1.5x60° 2
SB04N1-036 49.5 23 36 10 4 10 14 25.5 13.5 8.5 14 M8 1.5x60° 1
SB04N1-048 49.5 23 48 10 4 10 14 25.5 13.5 8.5 14 M8 1.5x60° 1
SB05C1 57 23 31 10 3 10 18 29 13.5 8.5 22 M8 12 1.5x60° 2
SB05C1-038 57 23 38 10 3 10 18 29 13.5 8.5 29 M8 1.5x60° 1
SB05C1-053 57 23 53 10 3 10 18 29 13.5 8.5 44 M8 1.5x60° 1
SB05C1T 57 23 31 10 3 10 18 29 13.5 8.5 22 M8 1.5x60° 1
SB05C1T053 57 23 53 10 3 10 18 29 13.5 8.5 44 M8 1.5x60° 1
SB05B1 62 23 27 10 4 14 19 29 13.5 8.5 18 M8 12 14 1.5x60° 2
SB05A1-038 62 23 38 10 4 14 19 29 13.5 8.5 29 M8 1.5x60° 1
SB05A1-053 62 23 53 10 4 14 19 29 13.5 8.5 44 M8 1.5x60° 1
SB05A1T 62 23 27 10 4 14 19 29 13.5 8.5 18 M8 1.5x60° 1
SB05A1T053 62 23 53 10 4 14 19 29 13.5 8.5 44 M8 1.5x60° 1
SB05N1 54 23 25 10 4 12 14 28 13.5 8.5 16 M8 5 1.5x60° 2
SB05N1-038 54 23 38 10 4 12 14 28 13.5 8.5 29 M8 1.5x60° 1
SB05N1-053 54 23 53 10 4 12 14 28 13.5 8.5 44 M8 1.5x60° 1
SB06B1 72 31 32 12 5 15 20 37 17 11 20 M10 12 15 1.5x60° 2
SB06A1-066 72 36 66 12 5 15 20 37 17 11 54 M10 1.5x60° 1
SB06A2 75 32 36 12 6 19 20 36 17 11 23 M10 3.0x60° 1
SB06A2-057 75 32 57 12 6 19 20 36 17 11 44 M10 3.0x60° 1
SB06A2-077 75 32 77 12 6 19 20 36 17 11 64 M10 3.0x60° 1
SB06A1T 72 31 32 12 5 15 20 37 17 11 20 M10 1.5x60° 1
SB06A1T066 72 31 66 12 5 15 20 37 17 11 54 M10 1.5x60° 1
SB06C1 76.5 40 37 14 5 15 25 36.5 19 13 22 M12 1.5x60° 1
SB06L1A 66 26 28 12 5 12 20 34 17 11 16 M10 1.5x60° 2
SB06L1T 66 26 28 12 5 12 20 34 17 11 15 M10 5 12 1.5x60° 1
SB08B1 95 35 38 14 5 24 25 46 19 13 23 M12 12 20 1.5x60° 2
SB08A1-056 95 35 56 14 5 24 25 46 19 13 41 M12 1.5x60° 1
SB08A1-076 95 35 76 14 5 24 25 46 19 13 61 M12 1.5x60° 1
SB08A2 95 35 42 14 6 24 25 46 19 13 26 M12 3.0x60° 1
SB08A2-077 95 35 77 14 6 24 25 46 19 13 61 M12 3.0x60° 1
SB08A1T 95 35 38 14 5 24 25 46 19 13 23 M12 1.5x60° 1
SB08A1T056 95 35 56 14 5 24 25 46 19 13 41 M12 1.5x60° 1
SB08A1T076 95 35 76 14 5 24 25 46 19 13 61 M12 1.5x60° 1
SB10B1 110 40 42 16 5 30 30 50 19 13 27 M12 15 20 1.5x60° 2
SB10A1 110 40 42 16 5 30 30 50 19 13 27 M12 15 20 1.5x60° 2
SB10A1-056 110 40 56 16 5 30 30 50 19 13 41 M12 1.5x60° 1
SB10A1-080 110 40 80 16 5 30 30 50 19 13 65 M12 1.5x60° 1
SB10A1-116 110 40 116 16 5 30 30 50 19 13 101 M12 1.5x60° 1
SB10A2Q 110 40 42 16 6 30 30 50 19 13 26 M12 3.0x60° 1
SB10A2Q080 110 40 80 16 6 30 30 50 19 13 64 M12 3.0x60° 1
SB10A2 110 40 42 16 6 30 30 50 19 13 26 M12 3.0x60° 1
SB10A2-080 110 40 80 16 6 30 30 50 19 13 65 M12 3.0x60° 1
SB10A1T 110 40 42 16 5 30 30 50 19 13 27 M12 1.5x60° 1
SB10A1T080 110 40 80 16 5 30 30 50 19 13 65 M12 1.5x60° 1
SB12A1 129 50 50 18 5 39 30 60 23 15 30 M14 1.5x60° 1
SB12A1-090 129 50 90 18 5 39 30 60 23 15 70 M14 1.5x60° 1
SB12C1 129 50 50 18 5 32 38 59 23 15 35 M14 1.5x60° 1
SB12A2 129 50 50 18 6 32 38 59 23 15 34 M14 3.0x60° 1
SB12A2-127 129 50 127 18 6 32 38 59 23 15 111 M14 3.0x60° 1
SB12A1T 129 50 50 18 5 39 30 60 23 15 30 M14 1.5x60° 1
SB12A1T090 129 50 90 18 5 39 30 60 23 15 70 M14 1.5x60° 1
SB12N1 111 50 50 21 4 21 30 60 25 17 33 M16 1.5x60° 1
SB12N1-090 111 50 90 21 4 21 30 60 25 17 73 M16 1.5x60° 1
SB12N1T 111 50 50 21 4 21 30 60 25 17 33 M16 1.5x60° 1
SB15C1 165 62 66 22 8 37 43 85 32 21 42 M20 1.5x60° 1
SB15A1 156 62 70 22 8 36 60 60 32 21 45 M20 1.5x60° 1
SB15A1-110 156 62 110 22 8 36 60 60 32 21 85 M20 1.5x60° 1
SB15A2 156 62 70 22 9 36 60 60 32 21 45 M20 3.0x60° 1
SB15AQ 129 50 50 18 6 32 38 59 23 15 34 M14 3.0x60° 1
SB15C1T 165 62 66 22 8 37 43 85 32 21 42 M20 1.5x60° 1
SB15N1 135 50 60 25.5 5 26 43 66 32 21 39 M20 1.5x60° 1
SB15N1-110 135 50 110 25.5 5 26 43 66 32
