YR & YRE SERIES Hydraulic Cylinders

Closed center hydraulic cylinders feature high speed and long stroke options for use with all closed center chucks with speeds up to 6000 RPM.

Special Features

  • Safety Check Valves to Ensure Safety in the Event of Hydraulic Failure
    • Safety Pressure Relief Valve to Prevent Damage to
    • Cylinders in the Event of Over Pressure
  • High Speed, Compact and Lightweight
  • Maintenance Free Design

SPECIFICATIONS

MODEL UNIT Y1020R(E) Y1225R(E) Y1530R(E) Y2035R(E) Y1240RE Y1550RE Y2050RE
Piston Stroke in. 0.787 0.984 1.181 1.378 1.575 1.969 1.969
Piston Area-Pull Side in.2 12.3 17.5 24.8 45.0 17.5 24.8 45.0
Piston Area-Push Side in.2 13.3 (13.0) 18.9 (18.6) 27.3 (27.0) 48.7 (48.4) 18.6 27.0 48.4
Max. Draw Bar Pull Force lbs. 6505 9423 13460 24229 9423 13460 24229
Max. Operation Pressure psi 570 570 570 570 570 570 570
Oil Leakage Rate* gal./min. 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Max. Speed rpm 6000 6000 5500 5500 6000 5500 5500
Net Weight lbs. 16 (17) 22 (23) 30 (31) 49 (50) 24 33 52
GD2 lbs.* ft.2 1.2 2.1 4.5 9.2 2.4 4.7 9.9

(E) Designated stroke detection option using detector plates and proximity switches. *Oil leakage rate is based on operating pressure of 435 psi at oil temperature of 122° F.

DIMENSIONS (Dimensions in Inches)

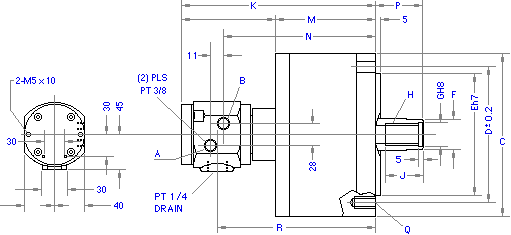

YR Dimensional Drawing

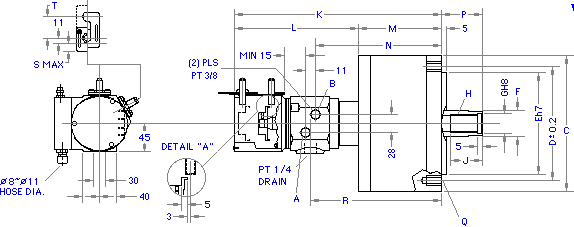

YRE Dimensional Drawing


MODEL Y1020R(E) Y1225R(E) Y1530R(E) Y2035R(E) Y1240RE Y1550RE Y2050RE
A (Piston Diameter) 4.134 4.921 5.906 7.874 4.921 5.906 7.874
B (Stroke) 0.787 0.984 1.181 1.378 1.575 1.969 1.969
C 5.315 6.299 7.480 9.646 6.299 7.480 9.646
D 3.937 5.118 5.118 5.709 5.118 5.118 5.709
E 3.150 4.331 4.331 4.724 4.331 4.331 4.724
F 1.181 1.378 1.772 2.165 1.378 1.772 2.165
G 0.827 0.984 1.220 1.457 0.984 1.220 1.457
H M20 M24 M30 M36 M24 M30 M36
J 1.378 1.732 1.772 2.362 1.850 2.165 2.953
K 7.756 (9.921) 8.071(10.236) 8.425 (10.591) 8.976 (11.339) 12.047 12.598 12.953
L 4.252 (6.417) 4.252 (6.417) 4.252 (6.417) 4.173 (6.535) 7.638 7.638 7.559
M 3.504 3.819 4.173 4.803 4.409 4.961 5.394
N 5.984 6.299 6.654 7.205 6.890 7.441 7.795
P max. 1.772 2.008 2.205 2.717 2.559 3.150 3.150
P min. 0.984 1.024 1.024 1.339 0.984 1.181 1.181
Q 6-M10x20 6-M12x24 12-M12x24 12-M16x30 6-M12x24 12-M12x24 12-M16x30
R 6.220 6.535 6.890 7.441 7.126 7.677 8.031
S (0.906) (0.906) (0.906) (1.102) 0.787 0.787 0.787
T (1.614) (1.614) (1.614) (1.811) 2.047 2.047 2.047
