 NRC Series

Self-contained air chucks with rotary sleeves. Ideal for low-speed applications, such as rotary tables.

Special Features

  • Self-contained body with integral cylinder
  • Standard soft jaws can be formed for precise operations
  • Rotary sleeve for easy installation of air lines
  • Flexible mounting can be used with all major rotary table manufcaturers

Specifications

Model Unit NRC-04 NRC-06 NRC-08 NRC-10
Thru-Hole in.
Jaw Stroke (diam.) in. 0.205 0.205 0.248 0.248
Plunger Stroke in. 0.591 0.472 0.591 0.591
Max. Gripping Force lbs. 551 4717 2425 3593
Max. Air Pressure psi 85 85 85 85
Max. Speed rpm 33.3 33.3 33.3 33.3
Net Weight lbs. 16 35 61 93
Matching Soft Top Jaw SB04B1 SB06B1 SB08B1 SB10B1
Matching Hard Top Jaw HB04N1 HB06B1 HB08A1 HB10A1

Model NRC Series Chucks are manufactured from high grade alloy steel. All sliding surfaces are hardened and ground to assure consistent accuracy and performance.

Lubrication nipple in each base jaw.

Master Jaw Serration
Chuck size 4" to 10": 1.5mm x 60¼

Mounting
Mounting supplied as optional adapter plate per applications.

Standard equipment
Chuck assembled with soft jaws, T-nuts, jaw mounting bolts and chuck mounting bolts.

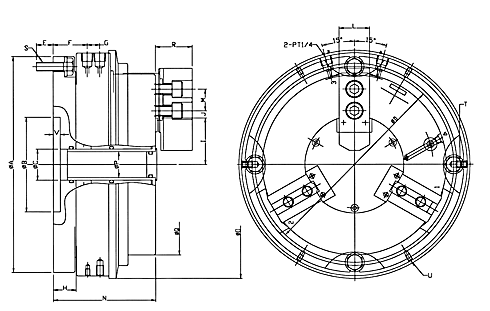

Dimensional Drawings



DIMENSIONS

Model NRC-04 NRC-06 NRC-08 NRC-10
A 6.535 9.094 9.843 12.598
B 3.150 4.331 4.331 5.512
C 0.984 1.417
D 5.709 8.110 8.937 11.614
E 0.689 0.728 0.748 0.846
F 1.159 1.425 1.543 1.543
G 0.516 0.567 0.567 0.567
H 0.709 0.945 1.024 1.102
Imax. 1.004 1.752 2.087 2.598
I min. 0.902 1.650 1.963 2.474
J max. 0.443 0.482 0.699 0.748
J min. 0.325 0.187 0.344 0.345
L 0.906 1.220 1.378 1.575
M 0.551 0.787 0.984 1.181
N 3.661 4.094 4.606 4.724
O 6.299 8.701 10.394 12.126
P
Q 4.315 6.496 8.252 9.898
R 1.063 1.417 1.654 1.811
S M10 M12 M10 M12
T M6x12 M6x12 M8x15 M8x12
U M5x8 M5x8 M5x8 M5x8
V 0.197 0.276 0.315 0.315
