 AY SERIES High-Speed Air Cylinders

  Lightweight and compact style pneumatic cylinders with closed centers.

Special Features

  • Compact and lightweight design (less mass and moment of inertia)
  • Alloy body
  • Low maintenance
  • Versatile for many workholding applications

Specifications

Model Unit AY-1315R AY-1720R AY-2225R
Piston Stroke in. 0.591 0.787 0.984
Piston Area Pull in.2 20.3 35.1 58.5
Piston Area Push in.2 19.8 34.1 57.5
Max. Draw Bar Pull Force kN (kgf) 4.8 (489) 8.2 (836) 13.9 (1417)
Max. Operation Pressure psi 116 116 116
Max. Speed rpm 5000 5000 4000
GD 2 kg.m 2 .010 .028 .080
Net Weight lbs. 11 18 21

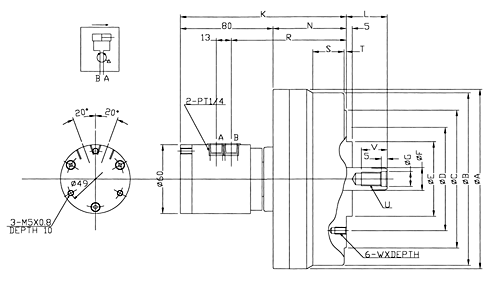

Dimensional Drawing

Dimensions

Model AY-1315R AY-1720R AY-2225R
A 6.142 7.874 10.039
B 5.906 7.677 9.646
C 4.724 5.512 6.693
D 3.543 3.937 5.118
E 2.559 3.150 4.331
F 0.787 0.984 1.181
G 0.512 0.669 0.827
K 5.630 6.378 6.811
L max. 1.378 2.559 2.795
L min. 0.787 1.772 1.811
N 2.480 3.228 3.661
R 3.898 4.646 5.079
S 1.063 1.772 1.299
T 0.079 0.197 0.197
U M12x1.75 M16.x2.0 M20x2.5
V 0.866 1.181 1.378
W M6x10 M10x16 M12x20
