IC SERIES Four-Jaw Independent Chucks
High quality, steel body, independent manual chucks.
|
Special Features
- Lightweight, seamless and rigid steel body
- Versatile for most applications
- Standard stepped hard jaws allow chucking both inside and outside diameters
- Reversible one-piece jaws offer flexibility
- Easily mounts to most major lathes and grinders
Specifications
| Model |
Thru-Hole |
Max. Gripping Force per jaw |
Gripping Range Int. (Diam.) |
Gripping Range Ext. (Diam.) |
Max. Speed |
Net Weight |
GD 2 |
Handle Torque |
| Unit |
in. |
KN (kgf) |
in. |
in. |
rpm |
lbs. |
N.m 2 (kgf.m 2 ) |
N.m (kgf.m) |
| IC-04 |
1.181 |
5 (510) |
1.575 |
3.543 |
2000 |
5 |
.10 (.01) |
34 (35) |
| IC-06 |
1.574 |
6 (612) |
2.362 |
5.512 |
1600 |
13 |
.78 (.08) |
49 (5) |
| IC-08 |
1.968 |
10 (1020) |
2.953 |
7.283 |
1600 |
33 |
2.94 (.3) |
83 (85) |
| IC-10 |
2.165 |
14 (1428) |
3.740 |
8.661 |
1600 |
46 |
5.88 (.6) |
118 (12) |
| IC-12 |
2.559 |
16 (1632) |
4.921 |
10.433 |
1400 |
65 |
13.7 (1.4) |
147 (15) |
| IC-14 |
2.952 |
17 (1733) |
6.102 |
12.205 |
1400 |
88 |
28.4 (2.9) |
157 (16) |
| IC-16 |
3.543 |
20 (2039) |
7.480 |
14.173 |
1200 |
125 |
44.1 (4.5) |
216 (22) |
| IC-18 |
3.937 |
20 (2039) |
8.661 |
15.945 |
1200 |
154 |
68.6 (7.0) |
216 (22) |
| IC-20 |
4.330 |
22 (2243) |
9.843 |
17.717 |
900 |
198 |
115 (11.8) |
245 (25) |
| IC-22 |
4.527 |
22 (2243) |
11.417 |
19.685 |
900 |
297 |
172 (17.6) |
245 (25) |
| IC-24 |
4.724 |
23 (2345) |
12.598 |
21.654 |
900 |
330 |
247 (25.3) |
275 (28) |
| IC-26 |
4.921 |
23 (2345) |
14.567 |
24.016 |
900 |
388 |
411 (42) |
294 (28) |
| IC-28 |
5.120 |
235 (2396) |
15.157 |
25.591 |
900 |
544 |
568 (58) |
294 (30) |
| IC-30 |
5.512 |
24 (2447) |
17.126 |
27.559 |
600 |
626 |
784 (80) |
294 (30) |
| IC-32 |
5.512 |
24 (2447) |
19.094 |
29.528 |
600 |
787 |
1009 (103) |
294 (30) |
| IC-36 |
6.496 |
24 (2447) |
21.850 |
33.465 |
600 |
910 |
1695 (173 |
353 (36) |
| IC-40 |
7.087 |
30 (3059) |
24.803 |
37.008 |
600 |
1322 |
2969 (303) |
510 (52) |
Dimensions
| Model |
A |
B |
C1 |
C2 |
D |
E |
F |
G |
H |
J |
K |
L |
| IC-04 |
3.937 |
1.890 |
3.937 |
2.953 |
3.386 |
1.181 |
0.157 |
M8X4 |
1.575 |
0.709 |
0.787 |
0.236-0.006 |
| IC-06 |
5.906 |
2.362 |
5.906 |
5.118 |
4.528 |
1.575 |
0.197 |
M10x4 |
2.165 |
0.984 |
0.984 |
0.315 |
| IC-08 |
7.874 |
2.953 |
7.874 |
6.890 |
6.102 |
1.969 |
0.236 |
M12x4 |
2.953 |
1.181 |
1.181 |
0.394-0.002 |
| IC-10 |
9.843 |
3.150 |
6.496 |
5.906 |
4.921 |
2.165 |
0.236 |
M12x4 |
3.543 |
1.181 |
1.378 |
0.394 |
| IC-12 |
11.811 |
3.543 |
7.323 |
6.693 |
5.512 |
2.559 |
0.236 |
M12x4 |
3.937 |
1.378 |
1.575 |
0.472 |
| IC-14 |
13.780 |
3.543 |
8.268 |
7.480 |
6.300 |
2.953 |
0.315 |
M12x4 |
4.331 |
1.378 |
1.772 |
0.472 |
| IC-16 |
15.748 |
3.937 |
9.055 |
8.268 |
7.087 |
3.543 |
0.315 |
M16x4 |
4.724 |
1.575 |
1.969 |
0.551 |
| IC-18 |
17.717 |
4.134 |
9.843 |
9.055 |
7.874 |
3.937 |
0.315 |
M16x4 |
5.118 |
1.575 |
2.165 |
0.551 |
| IC-20 |
19.685 |
4.331 |
10.709 |
9.843 |
8.661 |
4.331 |
0.315 |
M16x4 |
5.512 |
1.772 |
2.362 |
0.551 |
| IC-22 |
21.654 |
4.528 |
11.811 |
10.827 |
9.449 |
4.528 |
0.394 |
M20x4 |
5.906 |
1.772 |
2.559 |
0.551 |
| IC-24 |
23.622 |
4.724 |
12.992 |
11.811 |
10.236 |
4.724 |
0.394 |
M20x4 |
6.299 |
1.969 |
2.756 |
0.591 |
| IC-26 |
25.984 |
5.512 |
13.976 |
12.795 |
10.827 |
4.921 |
0.427 |
M16x8 |
6.693 |
1.969 |
3.150 |
0.591 |
| IC-28 |
27.953 |
5.748 |
15.039 |
13.780 |
11.811 |
5.118 |
0.472 |
M20x8 |
7.480 |
2.165 |
3.346 |
0.669 |
| IC-30 |
30 |
5.906 |
16.142 |
14.764 |
12.800 |
5.512 |
0.472 |
M20x8 |
7.480 |
2.165 |
3.346 |
0.669 |
| IC-32 |
32.008 |
5.906 |
17.323 |
15.748 |
13.780 |
5.512 |
0.472 |
M20x8 |
7.480 |
2.165 |
3.346 |
0.669 |
| IC-36 |
36.024 |
6.299 |
19.094 |
17.717 |
15.748 |
6.496 |
0.472 |
M24x8 |
8.268 |
2.362 |
3.740 |
0.748-0.004 |
| IC-40 |
39.370 |
7.480 |
21.654 |
19.685 |
17.717 |
7.087 |
0.472 |
M24x8 |
8.661 |
2.756 |
3.740 |
0.945 |

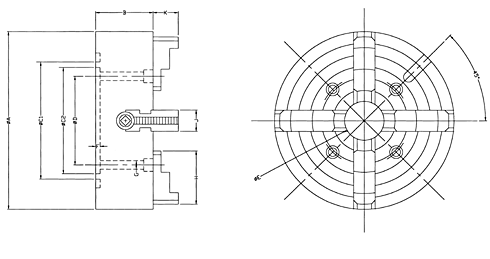

Dimensional Drawings
|
|
