SS Series Hydraulic Cylinders
| |
Compact and lightweight, with extremely short body length allows for compact mounting and high speed operations. Mounting of cylinder from the front or back allows added flexibility in adapter design and minimal setup lengths. Precision finished piston bores and cool running rotary unions are included for years of trouble-free performance. |
Special Features
- New Compact Design w/ substantially reduced moment of inertia
- Mounting of the cylinder from front or back allows added flexibility in adapter design and minimal setup lengths
- Built-in Check Valves and Pressure Relief Values
- High Speed
- Long Life and High Endurance
- Efficient Cooling at High Speeds
SPECIFICATIONS
| MODEL |
UNIT |
SS1246 |
SS1452 |
SS1453 |
SS1666 |
SS1775 |
SS1881 |
SS2110 |
| Bore |
in. |
1.811 |
2.047 |
2.087 |
2.598 |
2.953 |
3.189 |
4.173 |
| Piston Stroke |
in. |
0.630 |
0.866 |
0.866 |
0.984 |
0.984 |
0.984 |
1.181 |
| Max. Draw Bar Pull Side |
kN (kgf) |
38.9 (3967) |
52.1 (5313) |
52.1 (5313) |
65 (6628) |
64.7 (6587) |
73.1 (7454) |
71 (7240) |
| Max. Draw Bar Push Side |
kN (kgf) |
43.6 (4466) |
56.5 (5761) |
56.5 (5761) |
70.6 (7199) |
70.7 (7209) |
79.5 (8107) |
74.7 (7617) |
| Max. Operation Pressure |
psi |
650 |
650 |
650 |
650 |
650 |
650 |
650 |
| Max. Speed |
rpm |
8000 |
6500 |
6500 |
5600 |
5500 |
4800 |
3500 |
| GD 2 |
kg.m 2 |
.017 |
.031 |
.031 |
.065 |
.061 |
.087 |
.197 |
| Net Weight |
lbs. |
18.0 |
29.0 |
29.0 |
42.0 |
40.0 |
53.0 |
90.0 |
| Oil Leakage* |
gal./min. |
0.79 |
1.03 |
1.03 |
1.06 |
1.11 |
1.15 |
1.33 |
* This oil leakage rate is reached if the cylinder is used at an operating pressure of 427 psi at oil temperature of 122º F.

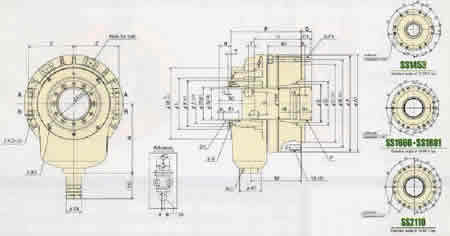

HYDRAULIC CYLINDERS DIMENSIONS (inches)
| MODEL |
SS1453 |
SS1666 |
SS1881 |
SS2110 |
| A |
7.087 |
8.150 |
8.740 |
10.236 |
| B |
6.496 |
7.480 |
8.071 |
9.449 |
| C |
5.512 |
6.614 |
6.614 |
7.874 |
| D |
3.150 |
3.740 |
4.331 |
5.315 |
| E |
2.756 |
3.346 |
3.937 |
4.921 |
| F |
M60x2.0 |
M75x2.0 |
M90x2.0 |
M115x2.0 |
| G |
2.087 |
2.598 |
3.189 |
4.173 |
| H |
2.205 |
2.815 |
3.386 |
4.528 |
| J |
2.874 |
3.465 |
4.055 |
5.236 |
| K. |
3.346 |
3.937 |
4.449 |
5.709 |
| L |
3.780 |
4.370 |
4.922 |
6.417 |
| M |
5.315 |
6.063 |
6.890 |
8.268 |
| N |
5.118 |
5.906 |
6.890 |
7.874 |
| P |
5.118 |
5.906 |
6.181 |
7.559 |
| Q Max. |
0.748 |
0.866 |
0.906 |
1.063 |
| Q Min. |
-0.118 |
-0.118 |
-0.079 |
-0.188 |
| R Max. |
1.850 |
1.969 |
1.969 |
2.165 |
| R Min. |
0.984 |
0.984 |
0.984 |
0.984 |
| S |
1.575 |
1.811 |
1.811 |
1.811 |
| T |
0.354 |
0.512 |
0.669 |
0.787 |
| U |
3.465 |
3.917 |
4.134 |
4.744 |
| W |
3.661 |
4.252 |
4.528 |
5.118 |
| X |
4.331 |
5.709 |
6.535 |
7.913 |
| Y |
2.165 |
2.756 |
3.346 |
4.331 |
| Z |
3.386 |
3.819 |
4.134 |
4.882 |
| A1 |
7.244 |
8.307 |
8.898 |
10.354 |
| B1 |
2.598 |
2.795 |
2.795 |
3.130 |
| C1 |
0.472 |
0.748 |
0.748 |
0.709 |
SPECIFICATION OF PROXIMITY SWITCHES
Standard Coolant Collectors (without proximity switch) are also available.
|
