CR SERIES Collet Chucks

  Collet chucks deliver near zero part movement, high concentric accuracy and compact design Offered in various sizes for main spindle or sub-spindle applications.

Special Features

  • Near Zero Part Movement
  • Hardened and Ground Alloy Steel Design
  • Low Maintenance
  • Parts Stop/Ejectors Optionally Available
  • High Speed
  • High Concentric Accuracy
  • Ideal for Second Operations
  • Variety of Sizes and Configurations
  • Excellent Gripping Characteristics
  • Special Collets Availiable

SPECIFICATIONS

MODEL UNIT CR42-L CR60-L CR66 CR80
Plunger Stroke in. 0.276 0.276 0.394 0.472
Max. Draw Bar Pull Force lbs. 5620 6744 8535 9885
Max. Gripping Force lbs. 12364 13488 22200 25700
Net Weight lbs. 23 39 45 70
Max. RPM rpm 7100 6300 4500 4000



Collet Drawings

Spring Collet

Master Collet
(S-Type Pads)

Crawford
Multi-Bore Collet

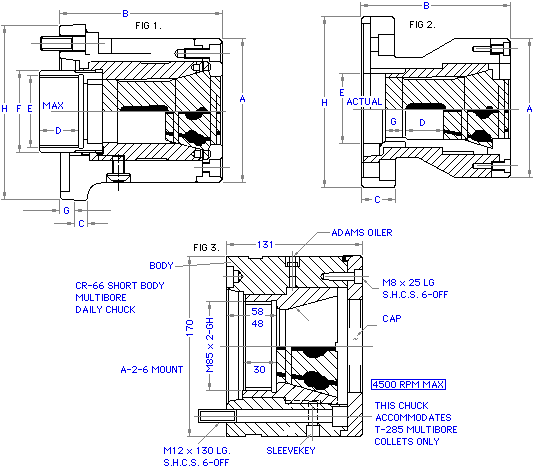

DIMENSIONS


MODEL UNIT CR42-L CR42A05-L CR42A06-L CR60-L CR60A06-L CR60A08-L CR66A08 CR80A08 CR80A11
Mount dia. 5.512x0.197 A2-5 A2-6 dia. 6.693x0.236 A2-6 A2-8 A2-8 A2-8 A2-11
A in. 4.331 4.331 4.331 5.433 5.433 5.433 6.614 8.268 8.268
B in. 5.236 5.630 5.709 5.827 6.299 6.142 6.299 7.815 9.685
C in. 0.787 0.787 1.181 0.945 1.063 1.457 1.181 1.181 2.992
D in. 1.181 1.181 1.181 1.181 1.181 1.181 0.787 0.984 0.984
E max. mm M55x1.5 M55x1.5 M55x1.5 M70x1.5 M70x1.5 M70x1.5 M90x2 M100x2 M100x2
F in. 2.441 2.441 2.441 3.150 3.150 3.150
G max. in. 0.433 0.039 -0.039 0.394 -0.079 0.079 1.457 2.283 3.681
G min. in. 0.157 -0.236 -0.315 0.118 -0.354 -0.197 1.063 1.811 4.154
H in. 6.299 5.315 6.496 7.480 6.496 8.268 8.661 8.661 9.843
Fig. # 1 1 1 1 1 1 3 2 2


CAPACITIES (Capacities in Inches)

MODEL               CRAWFORD ™               MULTIBORE COLLET SPRING COLLET MASTER COLLET & PADS
ID NO. Round Hexagon Square ID NO. Round Hexagon Square ID NO. ID NO.
CR42 M673 1.654 1.418 1.182 4728 1.654 1.418 1.182 5205 S-10
CR60 M677 2.363 2.048 1.654 4291 2.559(1) 2.048 1.654 5207 S-16
CR66A06 T285 2.625 2.250 1.750 5209 S-20
CR66A08 T285 2.625 2.250 1.750 K244 2.363 2.048 1.654 5209 S-20
CR80 J660 3.125 H47 3.150 2.716 2.204 5211 S-26
